Linn Drive Units with Pistonik Motor System Revolutionize 360 Loudspeakers

Experience the groundbreaking Linn drive units featuring the Pistonik motor system, delivering unmatched linearity and ultra-low distortion in bass performance.

A New Era in Loudspeaker Drive Units

When Linn announced its first-ever self-designed loudspeaker drive units back in 2026, it marked a seismic shift in audio technology. These 6” upper bass and 8” woofer units, crafted meticulously over three years, form the beating heart of the iconic Linn 360 loudspeaker. What truly sets them apart? The innovative Pistonik motor system, built to deliver flawless, ultra-linear force over an unprecedented excursion range, pushing bass accuracy and clarity to new heights.

As a longtime audio enthusiast, I remember being frustrated by the constraints of off-the-shelf drive units that caused distortion and noise in my favorite speakers. Linn's decision to engineer their own units from the ground up was a bold move, and it paid off in spectacular fashion. The 360 loudspeaker already boasted revolutionary tech like Adaptive Bias Control and the Power DAC, but the bass drivers remained a bottleneck—until now.

Pistonik Motor System: The Heart of Perfect Bass

At the core of these new drivers is Linn's Pistonik motor system—an absolute marvel of engineering. It generates pure, distortion-free force throughout its entire in-and-out travel, even when pounding out the deepest bass lines. How? Thanks to a very long-stroke motor design with an extended magnet gap, the motor tames every magnetic, mechanical, and thermal challenge that typically spoils linearity.

This means the Linn 360 speakers can move massive volumes of air with rock-solid control, offering the widest truly linear excursion range ever seen in low-frequency drivers. Imagine bass so clean and precise that every note hits with surgical accuracy, whether it’s a whispered sub-bass or the rumble of a thunderous kick drum.

To stabilize the magnetic field inside the voice coil gap and reduce eddy currents—a usual culprit for distortion—Linn immerses the entire Pistonik motor assembly in permanent magnetic saturation. This clever technique slashes distortion and reduces magnetic drag, which means less strain on your amplifier and more agility in sound reproduction.

Engineering Excellence: Ventilation and Suspension

The Pistonik’s triple-layered ventilation network is another stroke of genius. It eliminates acoustic compression—basically the annoying noise and distortion caused by trapped air—allowing air to flow silently through the motor structure. This results in a supremely smooth motion without any audible air turbulence, even during hours of heavy listening sessions.

Thermal management is another battlefield where the Pistonik shines. Thanks to carefully designed ventilation paths, the voice coil remains cool, drawing heat into the driver’s steel and aluminum structures. This continuous exchange of warm and cool air keeps performance steady, no matter how loud or long the listening party goes.

But it doesn't stop there. Linn’s dedication to system design means they engineered a bespoke suspension system tailored perfectly to their drivers. Using advanced multi-physics simulations, the suspension stiffens rapidly but predictably at the optimal moment, maintaining impeccable linearity and control even at maximum excursion. This is no ordinary suspension—it’s a precision instrument pushing the boundaries of what's possible.

Materials Matter: Aluminium Diaphragm and Exakt Technology

Linn chose a hard aluminum diaphragm for both the 6” and 8” drivers. Aluminum is light, rigid, and strong—ideal for pushing break-up behavior beyond the audible range while keeping moving mass low for better efficiency. By optimizing how the diaphragm couples with both the surround and the Pistonik motor system, Linn raised resonance frequencies and reduced their intensity, contributing to cleaner sound.

Every single drive unit undergoes a deep, laser-precise factory measurement using Linn’s proprietary Exakt technology. This process creates a tailor-made correction profile for each unit, with accuracy down to 0.0625dB. The system then applies this correction automatically once installed, effectively giving every listener their own perfectly calibrated "reference" speaker in their home.

“At the core, Pistonik delivers flawless linear force across its prodigious excursion range, immune to magnetic, mechanical, and thermal factors. Every surrounding element works together in service of ultimate linearity.” — Linn

Performance and Availability

These new drive units bring deeper, cleaner, and more controlled bass, redefining what's possible in low-frequency sound reproduction. And the best part? From the announcement day, they came standard in all new 360 loudspeakers and were made available as a monumental upgrade for existing owners. The upgrade is quick, taking a maximum of two hours, and can even be performed in the customer’s home.

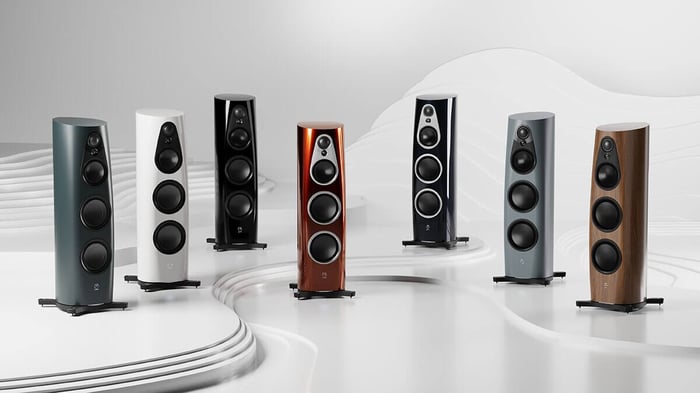

To complement this technological leap, Linn also introduced a stunning real wood walnut veneer finish for the 360 series. This natural wood finish brings warmth and depth to the speaker’s look, beautifully contrasting with the anodized black or silver machined aluminum trim options.

Here’s a quick glance at the pricing (USD, excluding tax):

• Drive Unit Upgrade for 360: $23,620
• 360 Exakt Integrated Loudspeakers: $142,440
• 360 Passive with Active Bass (PWAB) Loudspeakers: $95,920

Wrapping It Up

Linn’s bold step of developing proprietary drive units with the Pistonik motor system has truly transformed the 360 loudspeaker’s bass performance. From the deep engineering detail to the seamless integration with their Exakt technology, these drivers push the envelope of what audiophiles can expect from their sound system. If you’ve ever been obsessed with every nuance of low-frequency sound, the Linn 360 with Pistonik drivers offers a jaw-dropping experience.

Are you ready to feel bass like never before? What’s your favorite track to test a speaker’s deep bass response?

FAQ

• How does the Pistonik motor reduce distortion?
  By immersing the motor assembly in permanent magnetic saturation, it stabilizes the magnetic field and reduces eddy currents, which drastically lowers distortion.
• Can the drive unit upgrade be done at home?
  Yes, the upgrade can be performed in the customer's home and takes up to two hours.
• What materials are used in the drive unit diaphragms?
  Linn uses hard aluminum for the diaphragms to ensure rigidity, low mass, and high efficiency.
• What makes the suspension system unique?
  The suspension stiffens rapidly and predictably at the last moment, maintaining control and linearity even at maximum excursion, based on advanced simulations.
• What role does Exakt technology play with these drive units?
  It measures and corrects each drive unit’s unique characteristics with laser precision, ensuring perfect performance matching the design specifications.
