Naim NAC 552 / NAP 500 DR Review: The Magic of Benchmark Sound

Experience the unmatched sound clarity and power of the Naim NAC 552 / NAP 500 DR, a classic audio duo that still rivals today's top amplifiers.

A Timeless Audio Legend

If you’ve ever dipped your toes into the world of high-end audio, the Naim NAC 552 preamplifier paired with the NAP 500 DR power amplifier is likely a name that sparks admiration—and for good reason. Originally, the NAP 500 power amplifier made its debut in 2000, followed by the NAC 552 preamplifier in 2002. For over a decade, this pair reigned supreme as the pinnacle of Naim’s amplifier offerings—only to be eclipsed in 2014 by the jaw-dropping, ultra-premium Statement series.

Today, the Statement monoblocks command a jaw-dropping price of $299,997, making the NAC 552 / NAP 500 DR combo a far more accessible way to tap into genuine Naim magic without breaking the bank. Though these models were conceived nearly a quarter-century ago, their relevance in today’s audio landscape remains fiercely competitive, as we’ll explore.

What’s truly fascinating is that neither model has remained static over the years. Roughly a decade ago, Naim introduced its Discrete Regulator (DR) technology into the power supplies, boosting performance significantly without compromising the soul of the original design.

Despite the blistering pace of change in consumer electronics, analog audio gear like this evolves at a more deliberate pace. The Naim 500 series showcases how a well-engineered, uncompromising design from the past can still stand tall among the best of today’s high-end amplifiers.

Simple Elegance in Design and Features

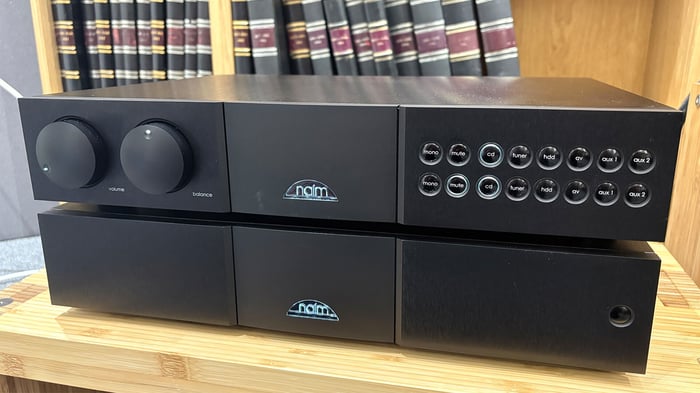

At first glance, the NAC 552 ($34,999) looks straightforward—no flashy digital inputs, no built-in phono stage, no Bluetooth. It’s a pure line-level preamplifier, so if you want to spin vinyl or stream via digital sources, you’ll need some extra gear. But don’t let its simplicity fool you; it comes with a remote control, giving you that modern convenience.

Key Specifications:

• Type: Pre-Amplifier / Power Amplifier combo
• Power Output: 140 Watts per channel at 8 Ohms
• Phono Stage: None (requires external unit)
• Inputs: 6 line-level inputs (all unbalanced)
• Outputs: 3 pre-outs, 3 line-level outs
• Bluetooth: Not available
• Headphone Output: None
• Dimensions:
  • NAC 552: 8.7 x 43.2 x 31.4 cm
  • NAP 500 DR: 16 x 43.2 x 37.4 cm
• Weight: Total 67.2 kg (NAC 552 = 12.9 kg, PS unit = 13.9 kg, NAP 500 DR = 25 kg, PS unit = 15.4 kg)

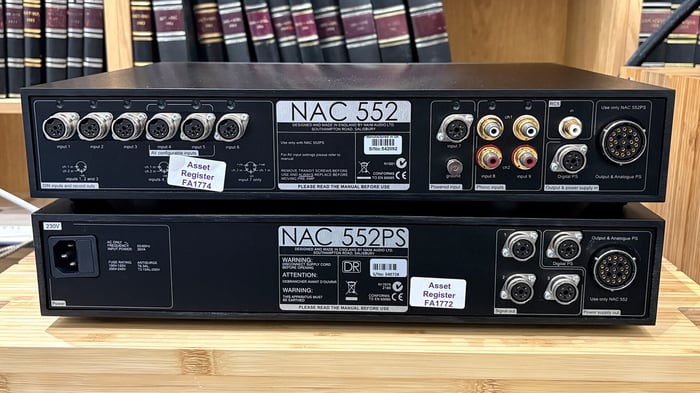

Despite being devoid of balanced inputs, the NAC 552 offers a surprising degree of flexibility. The rear panel shows seven classic DIN connectors and two pairs of RCA jacks, totaling nine inputs. However, the front panel has just six input buttons—each can be assigned to any of the inputs on the back, a clever feature that’s rare for a purist’s preamp.

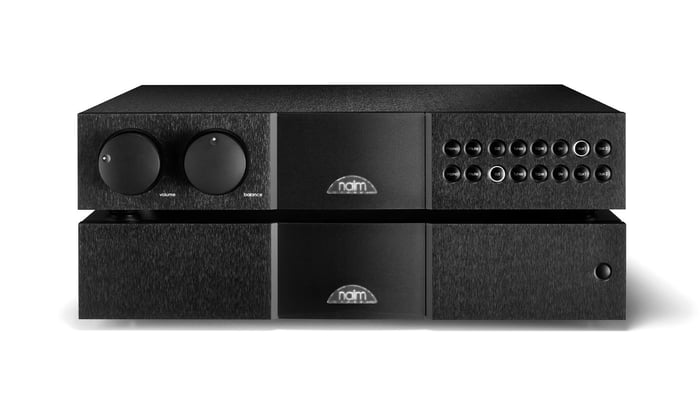

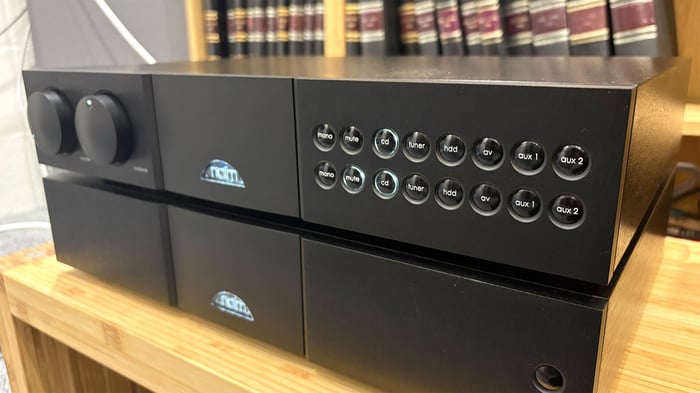

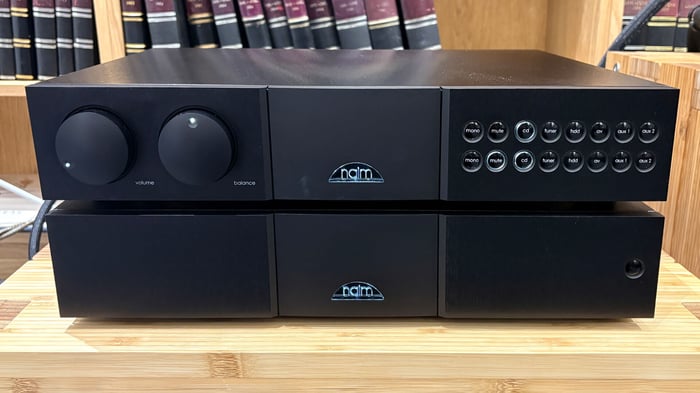

The front panel also sports two rows of buttons: the top for playback source selection and the bottom for choosing the recording source. Independent control over both is a thoughtful touch for those who still cherish analog recording devices.

Volume and balance controls sit to the left, using motorized potentiometers. The volume knob is a bit abrupt in its response, making fine-tuning at low levels slightly challenging—but that’s a minor quibble in an otherwise refined interface.

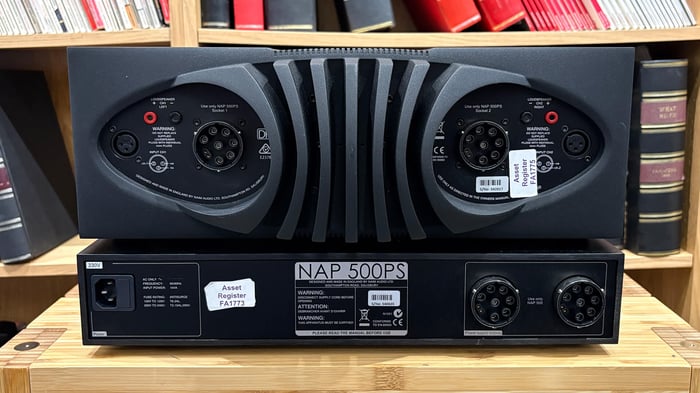

On the power amp side, the NAP 500 DR ($34,999) keeps connections simple. Its input is a three-pin XLR connector, wired non-balanced, accompanied by a special Naim cable to ensure proper channel assignment (mixing left and right cables here results in silence, so heads up!).

Meticulous Craftsmanship Inside and Out

Peek beneath the NAC 552’s hood, and you’ll find its sensitive audio circuits mounted on a hefty brass suspended chassis that floats on springs, minimizing vibration interference. This preamp literally “levitates” inside its enclosure—so be sure to secure it with four transport bolts before moving it, or risk damage.

The power supply is housed in a separate external unit (552 PS), weighing a hefty 13.9 kg, featuring a robust 800 VA toroidal transformer. This modular setup separates the sensitive audio stage from the power supply, reducing mechanical and magnetic interference.

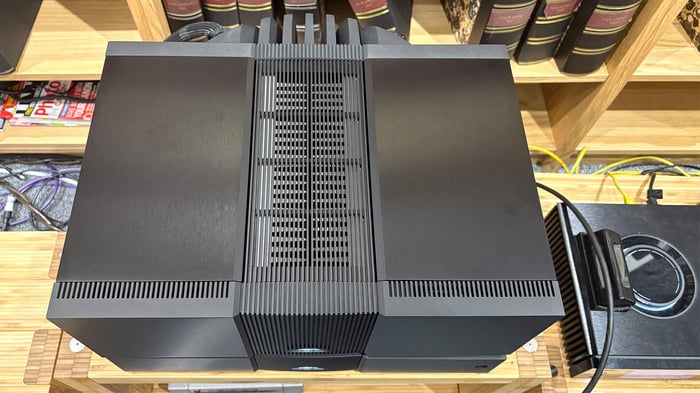

The NAP 500 DR power amplifier follows the same two-box design philosophy. Its external power supply (NAP 500 PS) packs an even mightier 1100 VA toroidal transformer, delivering multiple dedicated DC power rails for various amplifier sections. Connection to the amplifier uses dual Burndy cables—Naim’s signature high-quality interconnects.

Inside, this Class A/B beast pumps out 140 watts per channel at 8 ohms. But don’t let the numbers fool you—this amplifier sounds vastly more powerful than specs suggest. The build quality reflects obsessive attention to detail, from nary a stray cable to a carefully laid-out PCB. Discrete components reign supreme here, a deliberate choice over integrated circuits to maximize sonic purity.

Perfect Pairing for Elite Systems

Such high-caliber amplification naturally demands elite source components and speakers. If you’re unsure about your current gear, fix that before investing here—the Naim duo bares all flaws, especially in source quality.

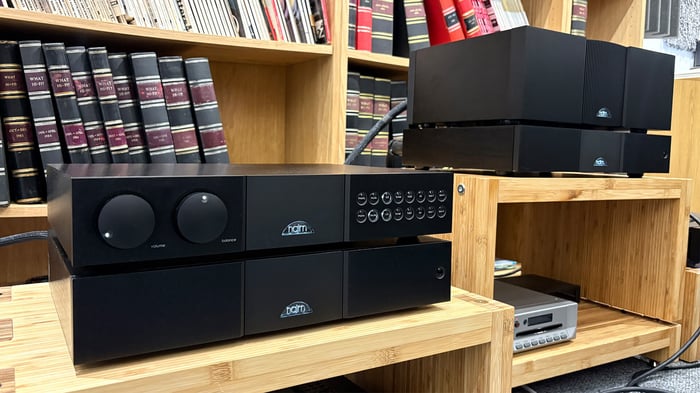

Our reference system paired the Naim ND555/555 PS DR music streamer flawlessly with this amplifier. For vinyl lovers, a Technics SL-1000R turntable loaded with a Kiseki Purpleheart MC cartridge hooked to a Cyrus Phono Signature preamplifier made for an exquisite analog front end. The Burmester 088/911 MkIII integrated amplifier also found a complementary match with the NAP 500 DR.

Speaker-wise, we rotated between ATC SCM50s, JBL Summit Amas, and Fyne Audio F1-8 bookshelf models—all connected with Naim’s own Super Lumina interconnects and NAC A5 speaker cables, supplemented by premium Chord Company and Vertere cables.

Thankfully, the Naim amps don’t run hot under normal use, but we still recommend placing them on well-ventilated shelves due to heat dissipation.

Sound That Transcends Time

Imagine the ethereal layering of Radiohead’s "Everything In Its Right Place"—it’s not just a song but an apt metaphor for this Naim amplifier combo’s sound signature. The playback is exquisitely organized and stable, with every note, vocal line, and sonic embellishment interlocking perfectly to create a musical tapestry that feels far greater than the sum of its parts.

The delivery is clean, direct, and bold, emphasizing the tactile essence of music with the finesse one expects at this price point. The clarity and control make the experience feel effortless, almost as if you’re intimately connected to the artist’s emotions rather than just listening passively.

This combination simply does what an amplifier should: it makes the signal louder without adding distortion.

Transparency is through the roof, allowing every nuance of the source and recording to shine without sacrificing musicality or energy. Unlike some audiophile gear that becomes clinical in its quest for purity, the NAC 552 / NAP 500 DR keeps the vitality and drive of music alive.

Take Beethoven’s Fifth Symphony, a notoriously complex piece, and this system lets you either zoom into individual instruments or simply relax and soak in the performance. The amplifier captures every explosive dynamic shift with authority and passion reserved for the very best.

Though rated at 140 watts per channel, these watts from Naim feel different—more potent, more gripping.

Instrumental textures come alive with both delicacy and rare physical presence. Vocals, like those from The Unthanks’ "Mount The Air", emerge naturally and beautifully, revealing every breath and inflection with grace.

The overall sound remains essentially neutral, steering clear of emphasizing any frequency range unfairly, unlike many competitors. Compared to our Burmester reference, the Naim may sound less spacious but wins hands down in image clarity and focus—each instrument stays precisely where it belongs, even in complex musical passages.

Naim’s famed rhythmic prowess also shines here. Playing Massive Attack’s "Angel", the amplifier delivers relentless drive and a dark menace that fully captures the track’s mood. The bass is a thrilling blend of power, agility, and grip—engaging rather than intrusive.

Verdict: An Enduring Icon

Twenty-five years is a long lifespan for any piece of audio gear. According to a Naim representative, there’s no indication this classic pre/power amplifier combo will be retired any time soon. That’s fantastic news for audiophiles who cherish analog purity.

The NAC 552 / NAP 500 DR remains a stellar choice, standing tall among the elite. Highly recommended for those who value rhythmic precision, power, and crystalline transparency above all else.

Ratings:

• Sound: 5/5
• Build Quality: 5/5
• Features: 3/5

Challenges & Considerations

NAC 552:

• Transformer Noise: The 552 PS power supply can emit mechanical hum if DC offset is present in the mains.
• Cable Sensitivity: Burndy and SNAIC cables require careful routing to avoid interference.
• Relay Wear: Input selection relays may fail over time, causing sound dropouts.
• Maintenance: Requires expensive capacitor replacement every 12–15 years by authorized technicians.

NAP 500 DR:

• DR Module Vulnerability: Voltage regulators are sensitive to power surges and overheating; repairs need genuine parts.
• Subwoofer Connections: Bridged operation limits subwoofer hook-up options; incorrect wiring can damage the amplifier.
• Ventilation Needs: Generates significant heat; ample airflow and rack space are mandatory.

Who Should Buy This?

• Ideal for: Audiophiles who demand uncompromising analog sound, rhythmic drive, and power, and who accept the premium cost and maintenance complexity.
• Not for: Those wanting modern digital features like built-in streaming or Bluetooth, compact gear, or immediate availability without long waits.

Bottom line: It’s still an extraordinary analog amplifier combo, but its price, service requirements, and legacy design call for a thoughtful purchase decision.

FAQ

• Does the NAC 552 include a phono stage?
  No, it does not. You’ll need an external phono preamp for vinyl playback.
• Are the amplifier inputs balanced?
  No, both the preamplifier and power amp use unbalanced inputs, although the connectors appear as XLR or DIN.
• How powerful is the NAP 500 DR?
  It delivers 140 watts per channel at 8 ohms, but its real-world performance feels more potent.
• Is the Naim combo compatible with digital sources?
  Not directly. It requires external digital-to-analog conversion or streaming devices.
• What maintenance does this gear require?
  Periodic servicing every 12–15 years, including capacitor replacement by authorized professionals, is recommended.
