Wharfedale Diamond 12.1 HCP Review — Premium Sound for Home Cinema

Experience the refined sound quality of the Wharfedale Diamond 12.1 HCP, a high-class audio system designed for immersive home entertainment.

A Legendary Heritage Reimagined

Being part of a prestigious lineage isn’t always a breeze—just ask the Windsors. The Wharfedale brand, much like a royal dynasty of the audio world, carries a storied history that started back in 1982 with its iconic Diamond series. Now in its 14th generation, labeled somewhat confusingly as Diamond 12, the series offers a range of models: three bookshelf speakers (12.0, 12.1, 12.2), two floorstanders (12.3 and 12.4), and a center channel (12.C).

But unlike royal drama, this audio dynasty comes without the headaches. To breathe fresh life into the range, Wharfedale collaborated with German designer Karl-Heinz Fink, known for his work with Q Acoustics, to overhaul nearly every element—from the cabinet to the speaker materials—delivering a technically savvy and captivating lineup. The result? An inviting set of speakers perfect for stereo bliss or a full 5.1 surround setup.

Price and Configuration of the Wharfedale Diamond 12.1 HCP

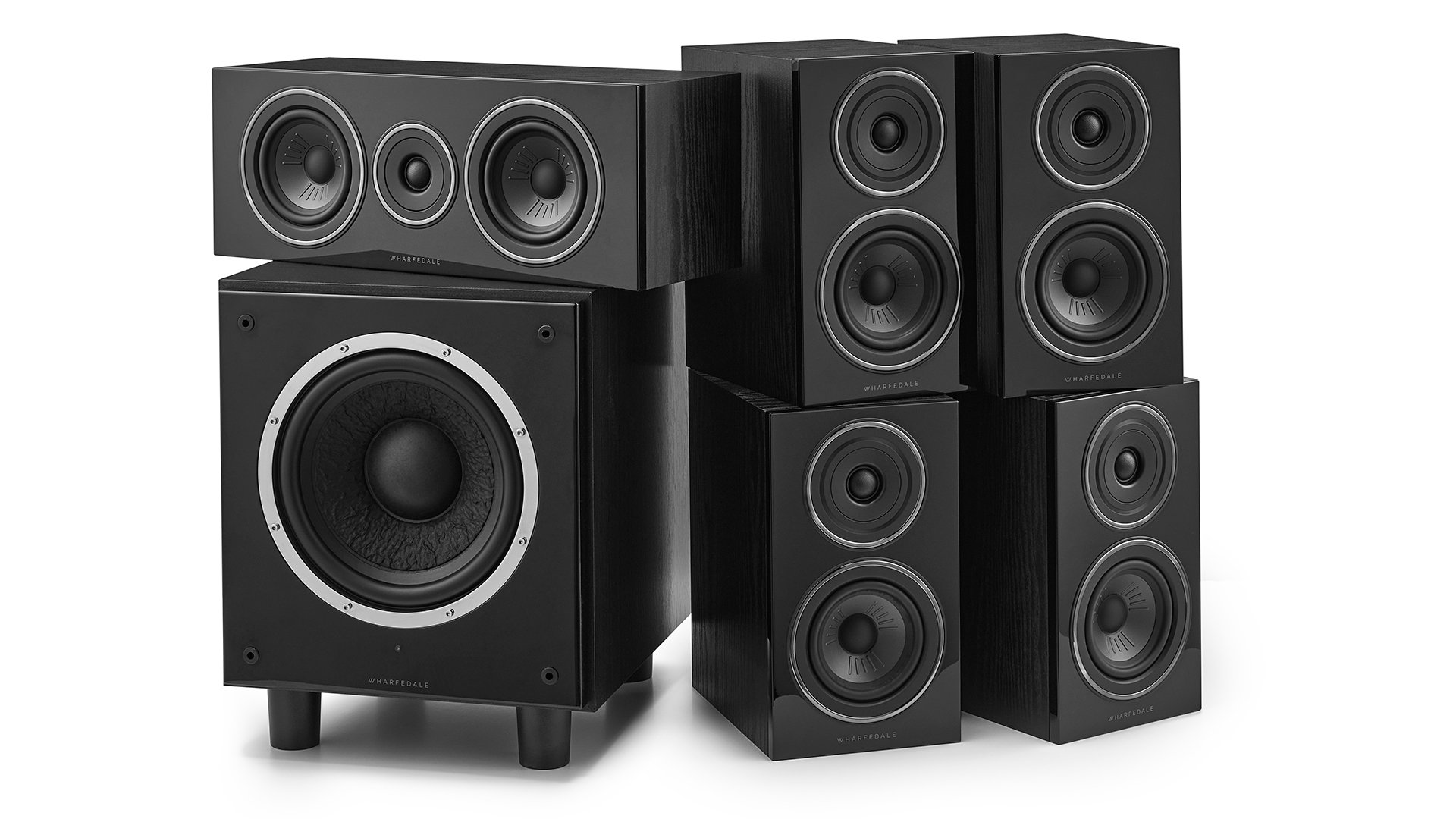

Wharfedale offers various ways to mix and match Diamond 12 speakers for your home theater. This review focuses on a setup featuring four mid-sized Diamond 12.1 bookshelf speakers serving as front and rear channels, paired with the 12.C center speaker and the SW10 active subwoofer handling bass duties.

Known as the Diamond 12 HCP (Home Cinema Pack) in the UK, this bundle offers a neat saving compared to buying the components individually—a smart move for those building a serious sound setup without breaking the bank.

Design That Marries Elegance and Substance

The redesign kicked off with the cabinet construction, resulting in a robust yet elegant assembly. Available in four matte wood finishes complemented by glossy black or white front panels, these speakers balance classic good looks with modern flair.

Wharfedale’s engineers crafted the MDF panels with varying thicknesses and incorporated strategic bracing to tame unwanted resonance. The enclosures feel substantial but not bulky, exuding a quality that belies their price. Each speaker boasts an 8-ohm impedance and dual binding posts for bi-wiring; standard jumpers with mirrored finishes are included for regular connections.

Technical Specs at a Glance

Diamond 12.1 (Bookshelf)

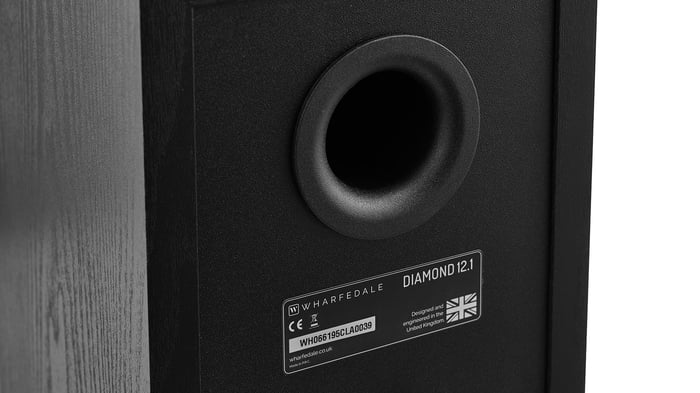

• Type: 2-way, rear-ported
• Max Power: 100W
• Sensitivity: 88 dB
• Impedance: 8 Ohm
• Frequency Response: 65 Hz – 20 kHz
• Dimensions (HxWxD): 31 x 18 x 28 cm
• Weight: 6.8 kg each

Diamond 12.C (Center Channel)

• Type: 2-way, rear-ported
• Max Power: 120W
• Sensitivity: 90 dB
• Impedance: 8 Ohm
• Frequency Response: 90 Hz – 20 kHz
• Dimensions (HxWxD): 18 x 48 x 21 cm
• Weight: 8.5 kg

SW10 Subwoofer

• Amplifier Power: 200W
• Sensitivity: 110 dB
• Input Impedance (Line): 10 kOhm
• Input Impedance (LFE): 5 kOhm
• Frequency Response: 40 Hz – 120 Hz
• Dimensions (HxWxD): 42 x 34 x 38 cm
• Weight: 16.5 kg

Ingenious Driver Technology

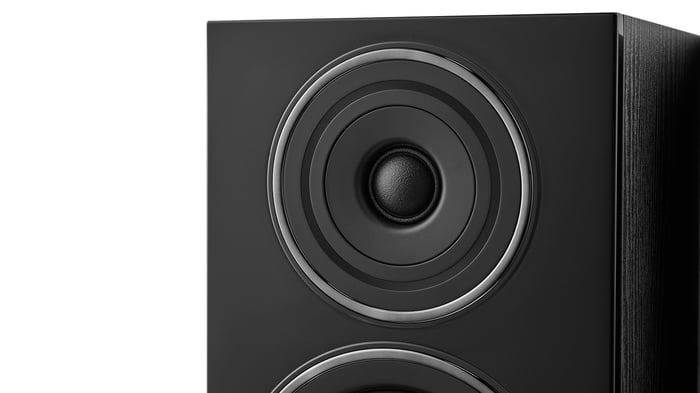

The 12.1 bookshelf speakers feature a 13-cm mid/bass driver crafted from “Klarity,” a polypropylene composite infused with mica—not a Kardashian spin-off, but a material boosting stiffness and clarity. This driver is paired with an aluminum-compensated magnet system that minimizes inductive distortion during coil movement.

Topping it off, a 25-mm textile dome tweeter sports a glossy finish and an open design to ensure wide sound dispersion, smooth frequency response, and dynamic punch. The crossover, fitted with premium-grade components, seamlessly blends the two drivers for cohesive audio.

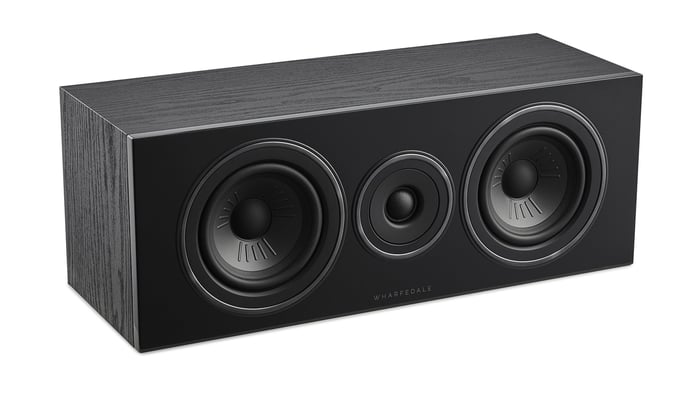

The center 12.C model scales this up with a pair of 13-cm Klarity drivers and a tweeter, matching the front speakers for tonal harmony.

Completing the package, the SW10 subwoofer matches the wood finish and glossy front panel aesthetic. It houses a forward-firing 25-cm long-throw driver. Controls like level, phase, and auto-on (which wakes the subwoofer on signal detection) are discreetly tucked away on the rear panel alongside two RCA inputs. Mounted on sturdy legs, it looks more like a tasteful piece of furniture than a bulky black box—a welcome addition to any living room.

Sound That Captivates and Delights

The SW10 subwoofer’s punchy agility is immediately apparent, blending seamlessly with the smaller Diamond 12.1s, which themselves boast impressively integrated bass. The ensemble delivers a rich, vibrant soundstage—perfect for movies with dynamic soundtracks.

Watching Amélie, Yann Tiersen’s iconic score bursts forth with warmth and depth, yet the speakers maintain crystal clarity across the spectrum, not just in the highs. Despite their responsiveness, the 12.1s keep tight control, exhibiting authority and coherence.

The system’s flexibility shines during a scene where Amélie meets the photo booth repairman. The stylized, enhanced sound design and quick cuts explode with dynamic precision, surrounding the viewer with balanced, immersive effects.

The smooth soundstage might grow in grandeur with floor-standing front speakers, but the uniformity of using identical speakers for front and rear channels offers undeniable tonal consistency.

The 12.C center channel shines as well, holding its own against the 12.1s. Watching The Sound of Silence, the quiet, emotionally charged dialogue projects with nuance and clarity. The speakers pick up subtle ambient sounds like creaking floorboards and humming pipes, making the urban setting palpably real.

When pressed with the intensity of Blade Runner 2049, the system delivers a thick, resonant soundtrack with both precision and charisma. From raindrops on the windshield to wiper swipes, every detail comes through. Explosive moments maintain balance and power without overwhelming the mix.

Final Verdict: A True Classic in Home Audio

With poise, clarity, and charisma, Wharfedale Diamond 12.1 HCP is essentially the Audrey Hepburn of home cinema systems. The bass is full-bodied without overshadowing mids and highs, presenting a mature sound rich in punch, detail, and sensitivity.

Big enough for cinematic scale with a broad soundstage yet discreet and accessible for many users, the 12.1 pack is a stellar all-rounder for music and movie lovers alike.

Ratings

• Sound: 5/5
• Compatibility: 5/5
• Build Quality: 5/5

The Wharfedale Diamond 12.1 HCP offers rich, dynamic sound with impeccable control and refined design.

FAQ

• What is the ideal use for the Wharfedale Diamond 12.1 HCP?
  It’s perfect for both home cinema setups and stereo music listening, providing balanced, immersive sound.
• Does the system support bi-wiring?
  Yes, the speakers feature dual binding posts for bi-wiring, enhancing sound clarity.
• What sizes are available in the Diamond 12 series?
  The lineup includes three bookshelf speakers (12.0, 12.1, 12.2), two floorstanders (12.3, 12.4), and a center channel (12.C).
• How does the SW10 subwoofer perform?
  The SW10 delivers punchy, agile bass with a long-throw driver, fitting seamlessly into living spaces with its elegant design.
• Can I expand the Diamond 12.1 HCP system later?
  Absolutely. The series allows for flexible configurations to tailor your home audio experience.
