Rotel DX-5 Review: Compact Yet Powerful Stereo Amplifier

Explore the Rotel DX-5, a compact stereo amplifier delivering impressive sound quality and tailored for digital audio sources.

A Compact Powerhouse for Digital Sound

The Rotel DX-5 is a compact, beautifully crafted, and thoughtfully designed stereo integrated amplifier focused on digital audio sources. When you hold it, the quality of construction speaks volumes—it’s clearly built for longevity. According to the specs, this little beast handles high-resolution sources through USB, coaxial, and optical inputs, plus it supports TV audio via HDMI ARC. It also offers a single analog line input for older gear—though not for turntables unless they have a built-in phono stage.

Unlike some modern gear, the DX-5 isn’t a network device, so forget about fancy apps for control. But it does come with a remote that looks and feels just as classy as the amp itself; just be prepared to point it right at the unit, as it doesn't fare well with indirect angles or long distances.

Release Date and Price

• Release Date: April 2025
• Price: $1499

The Rotel DX-5 is available now, priced at $1499—a reasonable tag for an integrated stereo amp from a reputable brand. While it isn’t exactly budget-friendly, considering its size and weight, the asking price feels fair for what it offers.

Availability and Usage Notes

Currently, the DX-5 isn’t officially distributed everywhere, but you can find it through specialized high-end audio retailers or some international marketplaces. Pricing varies depending on currency fluctuations and import conditions, but expect something around $1400 to $1600 equivalent, potentially stretching higher if you factor in shipping and taxes from overseas.

The amp uses a universal power supply compatible with 230V mains, so powering it up is a breeze with a standard power cable. However, keep in mind there’s no official warranty coverage in some markets, with sellers handling support directly. The interface and menus are generally in English, but navigating the settings is straightforward. Compatibility with digital sources and Bluetooth works smoothly.

Technical Specs at a Glance

• DAC: ESS Sabre ES9039Q2M
• Inputs: More digital than analog
• Power Output: 25 watts per channel at 8 ohms

Inside, the DX-5’s compact chassis is packed efficiently. The standout component is a robust toroidal transformer crafted in-house, delivering 25 watts per channel in Class AB operation at 8 ohms, rising to 33 watts at 4 ohms.

The ESS Sabre ES9039Q2M chipset handles digital-to-analog conversion, supporting up to 32-bit/384kHz PCM and DSD512 via the USB-B input—though some sources might need drivers. Coaxial and optical inputs handle 24-bit/192kHz PCM. Certified as Roon Tested, the amp boasts an impressive frequency response from 10 Hz to 80 kHz, with low distortion and excellent signal-to-noise ratio.

Inputs include three digital ports lined up with HDMI ARC and one analog line input via RCA jacks. Outputs cover speaker terminals, a preamp output for subwoofers, and a front 6.3mm headphone jack. Wireless Bluetooth connectivity supports SBC, AAC, and aptX HD codecs, with a discreet antenna tucked into the rear.

While the design clearly favors digital setups, the lack of a second analog input or built-in phono stage might irk vinyl lovers, though it’s understandable given the amp’s compactness and target audience.

Functionality rating: 4.5 / 5

Sound Quality: Open, Detailed, and Dynamic

• Sound: Clear, detailed, and well-structured
• Rhythm: Confident handling of dynamics and pace
• System Matching: Requires careful speaker pairing

Now, here’s where you need to pay a bit of attention. The DX-5 can be a tad unforgiving—especially if your speakers or source material already emphasize the upper frequencies. If your setup likes a bright top end, the DX-5 will push that brightness even further. For instance, Otis Redding’s soulful “That’s What My Heart Needs” feels brighter than usual, while sharp tracks like FKA twigs’ “Cheap Hotel” could become fatiguing if your system isn’t a perfect match. Spending a few minutes ensuring your speakers don’t provoke harshness will reward you handsomely here.

Put that aside, and the story is all good news. From deep, well-formed lows to smooth upper registers, the DX-5 maintains tonal consistency and neutrality—it lets the character of your recordings shine without interference.

The bass is rich and textured, with tight control over attack that keeps rhythms lively and confident. Midrange sounds informative and clear, bringing vocals to life with a directness that’s both positive and expressive. The top end is equally impressive, filled with detail and energy without becoming overwhelming.

All of this plays out across a wide, well-defined soundstage. Even complex tracks like Marika Hackman’s “Bath is Black” remain easy to follow, with each element given enough space, yet unified into a coherent whole. This sense of completeness is rare at this price point, especially combined with such excellent separation.

Dynamic shifts—whether in attack, intensity, or volume—are precisely rendered, with subtle harmonic changes getting their due. The amp makes the gap between quiet and loud feel meaningful, despite what the specs might suggest about its power rating.

If there’s one standout trait, it’s the DX-5’s remarkable detail retrieval—from broad strokes down to the tiniest nuances—all laid out naturally and convincingly.

Sound quality rating: 4.5 / 5

Design: Compact Elegance

• Dimensions: 76 x 215 x 251 mm (HxWxD)
• Materials: Anodized aluminum
• Finish: Black or silver

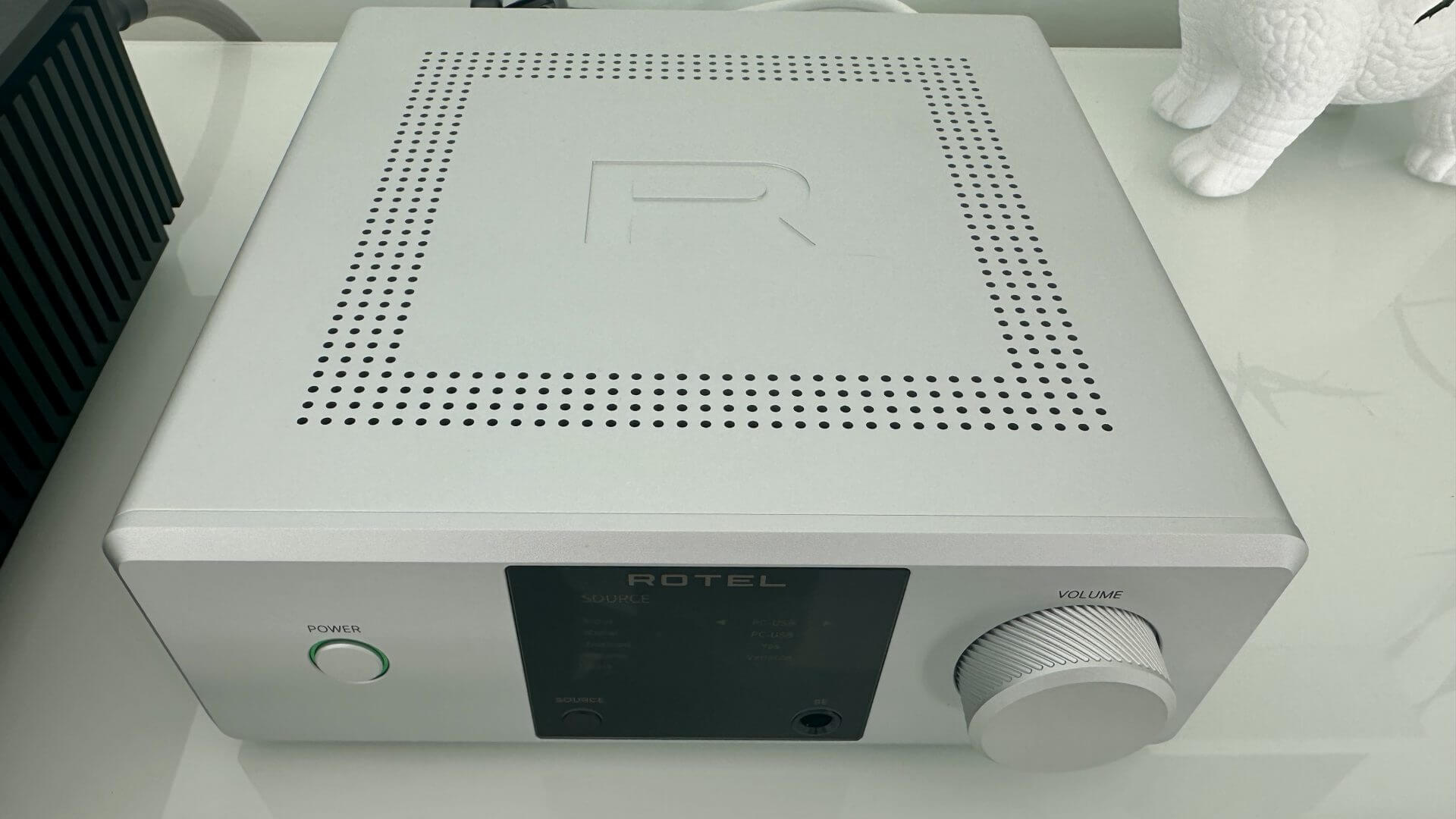

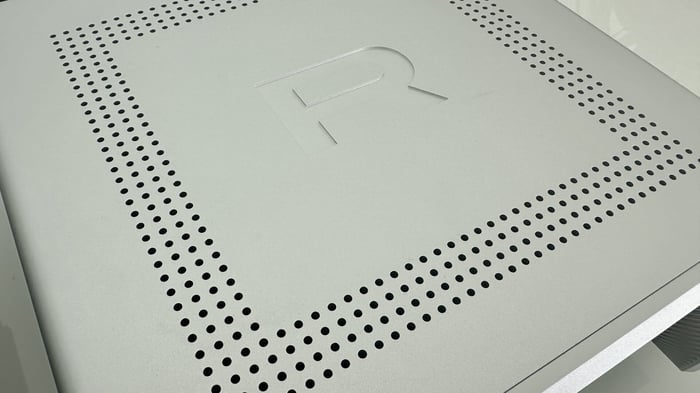

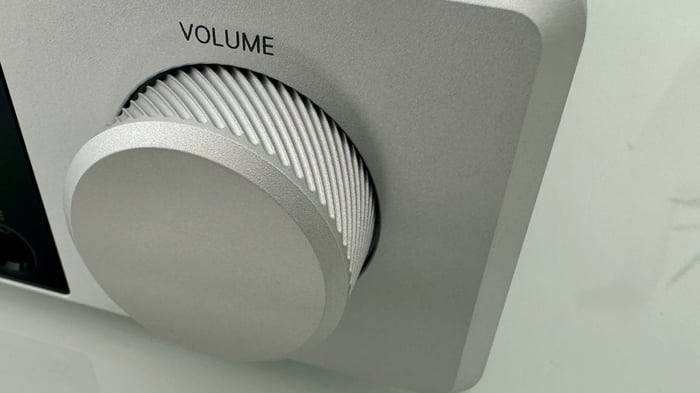

Despite its petite size, the Rotel DX-5 looks and feels like a premium product. Its anodized aluminum chassis delivers a tactile and visual treat, whether you opt for the sleek black or classic silver finish. The industrial design is refined, with thoughtful touches such as a ribbed volume knob and a boldly engraved “R” on the ventilated top panel.

Everything about its build and finish screams quality—no corners cut here. It’s the kind of design that promises to age gracefully and last for years.

Design rating: 5/5

Ease of Use and Setup

• Display: Full-color TFT screen
• Remote: Heavy and luxurious but finicky
• Controls: Minimal physical buttons

No Wi-Fi here, so no app-based control. Instead, the DX-5 sticks to tried-and-true methods. Front and center is a bright, sharp TFT display showing volume, input selection, and a surprisingly detailed settings menu. The left corner features a source selection button near the headphone jack, with a backlit power button to the left and a large, satisfying volume knob to the right.

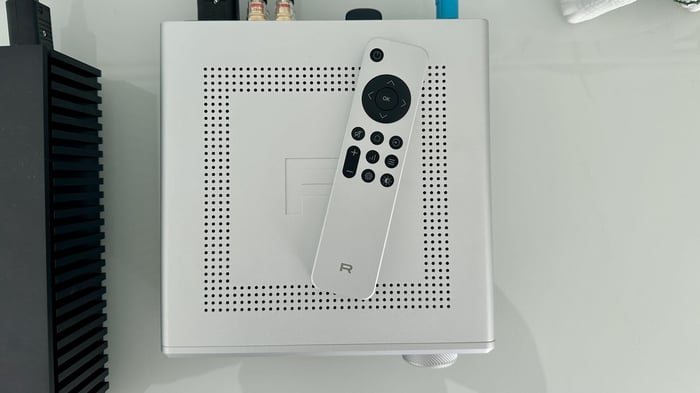

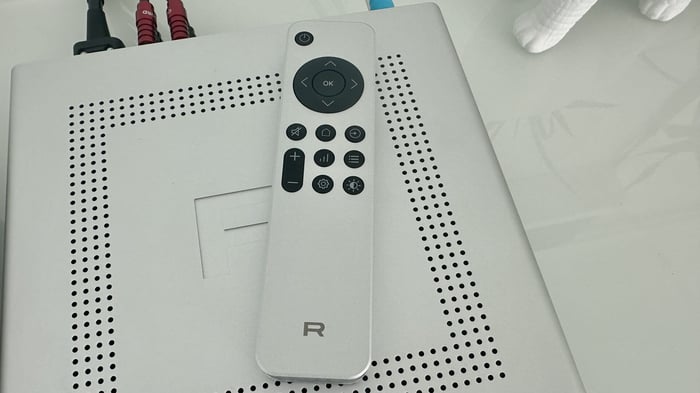

The remote is a curious mix: heavy aluminum with well-placed buttons and solid build quality, but utterly dependent on direct line-of-sight to the amp’s front sensor. This remote’s sensitivity to angle and distance is almost a throwback to older days—it demands precision, which can be frustrating.

Ease of use rating: 3/5

Value for Money

If you focus solely on the amount of hardware and raw specs, the DX-5 might seem outgunned compared to competitors boasting heftier construction and more features. Its technical details might feel sparse on paper.

But when you zoom in on the quality of components, the elegant design, meticulous assembly, and the brilliantly detailed, open sound it delivers, the DX-5 stands out as a valuable investment. Just maybe try to forget the remote control hiccups…

Value rating: 4/5

Should You Buy the Rotel DX-5?

Other Compact Amplifier Options

If you love the DX-5’s compact form factor but want a phono input instead of USB and a more budget-friendly option, the excellent Rega Brio mk7 is worth a look. It delivers thrilling, powerful sound with detailed nuance.

Or if you’re okay paying a premium for compactness and musical prowess, Cyrus AMP 40 is a brilliant all-rounder recently released that packs a punch well beyond its size.

How I Tested the Rotel DX-5

I hooked up the DX-5 to a pair of Bowers & Wilkins 606 S3 Signature speakers using Chord Company Clearway X speaker cables. For sources, I used a Naim Uniti Star streamer and CD player connected to the lone analog input, and my Apple MacBook Pro connected via USB-B with an enhanced Colibri system to feed the highest-res digital files.

Then came hours of listening across genres and file formats—probably more than necessary, but hey, who complains when the music sounds this good?

The Rotel DX-5 delivers an open, detailed, and engaging sound presentation with excellent dynamics and clarity. — Audio Enthusiast

Looking to celebrate your love for music and this exceptional amplifier? Shop your favorite album cover poster at our store for a perfect visual companion to your audio setup.

Shop Album Cover Posters

FAQ

• What digital inputs does the Rotel DX-5 offer?
  It includes USB-B (supports high-res PCM and DSD), coaxial, optical, and HDMI ARC inputs.
• Can the DX-5 connect to turntables?
  Not directly, unless your turntable has a built-in phono preamp, as the DX-5 lacks a dedicated phono input.
• How powerful is the amplifier?
  It outputs 25 watts per channel at 8 ohms and up to 33 watts at 4 ohms.
• Does it support wireless streaming?
  Yes, via Bluetooth with SBC, AAC, and aptX HD codec support.
• Is the remote control easy to use?
  The remote is well-made but requires precise aiming at the amp, which can be inconvenient.
