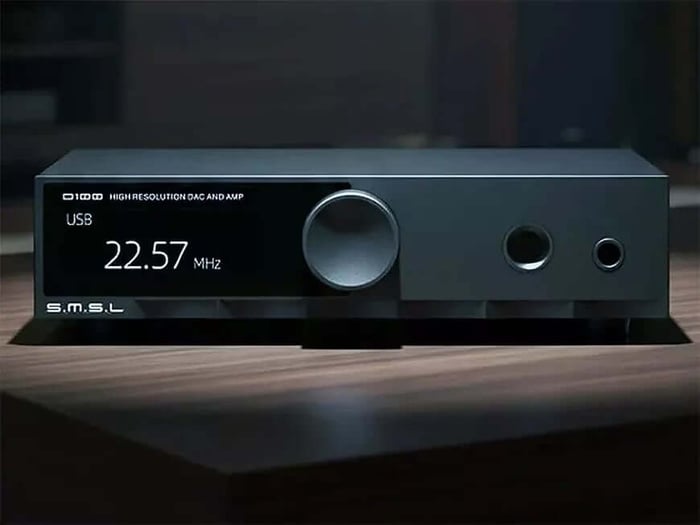

SMSL D100: Compact Desktop DAC with Balanced Headphone Output

Experience high-fidelity audio with the SMSL D100 desktop DAC featuring a powerful balanced headphone amplifier and versatile connectivity options.

A Sleek Desktop DAC Tailored for Audiophiles

If you’re like me, constantly hunting for that sweet spot where high-quality sound meets convenience, the SMSL D100 DAC might just be your new best friend. This desktop DAC (Digital-to-Analog Converter) with an integrated headphone amplifier is designed to seamlessly connect with computers, network players, and digital transports.

Housed in a compact and stylish aluminum chassis, the D100 packs a punch with three digital inputs and a linear analog output via RCA connectors. Plus, it offers not one but two headphone jacks—perfect for those moments when you want to share your tunes or switch between headphones without fuss.

Powerful ESS ES9081 DAC Chip at Its Core

What really caught my ear about the SMSL D100 DAC is its use of the ESS ES9081 DAC chip, which features an impressive eight-channel configuration running in parallel. This powerhouse boasts a dynamic range of up to 127 dB, promising crystal-clear audio reproduction that truly brings your digital music to life.

When connected via USB, the D100 supports decoding of PCM signals up to 32-bit/768kHz and DSD formats all the way up to DSD512. To top it off, it also supports MQA (Master Quality Authenticated) format, making it a versatile device for even the most discerning audiophiles.

Robust USB Interface and Multiple Digital Inputs

The USB audio reception is handled by a sophisticated XMOS XU-316 interface, which supports Native DSD and DoP (DSD over PCM) up to DoP256. In addition to USB-C connectivity, the D100 offers optical and coaxial digital inputs capable of handling PCM signals up to 24-bit/192kHz and DoP64.

One neat feature I appreciate is the built-in display that shows the original sampling frequency of the track you’re playing—an elegant touch that adds transparency and control to your listening experience.

Balanced Headphone Amplifier with Dual Outputs

Switching gears to the headphone section, the SMSL D100 DAC doesn’t disappoint. It features a fully balanced headphone amplifier with two front-panel outputs: an unbalanced 6.35mm jack and a balanced 4.4mm Pentaconn connector.

The power output is impressive for a unit this size:

• Balanced output delivers 2 × 400 mW into 32 Ω
• 2 × 350 mW into 16 Ω
• 2 × 105 mW into 150 Ω
• Power scales down to 2 × 50 mW at 300 Ω and 2 × 26 mW at 600 Ω

This versatility means the D100 can handle a wide range of headphones, from easy-to-drive models to higher impedance beasts, all while maintaining clean and dynamic sound.

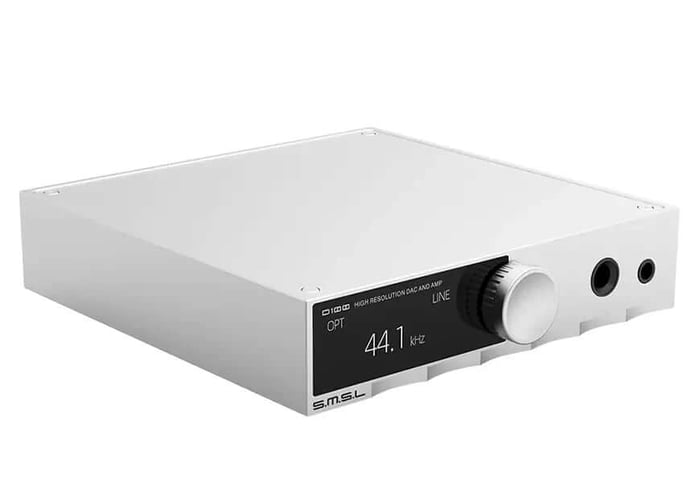

Intuitive Front Panel Controls and Elegant Display

Controlling the SMSL D100 DAC is straightforward and satisfying. The front panel lets you select the input source, switch between the line-out and headphone amp, and adjust screen brightness along with auto-off timing.

You can also choose from eight different digital filters for the DAC, tailoring the sound signature to your preferences. The information is presented on a sharp 1.66-inch display, cleverly placed behind laminated tempered glass, giving the unit a premium feel.

Connectivity and Build Quality

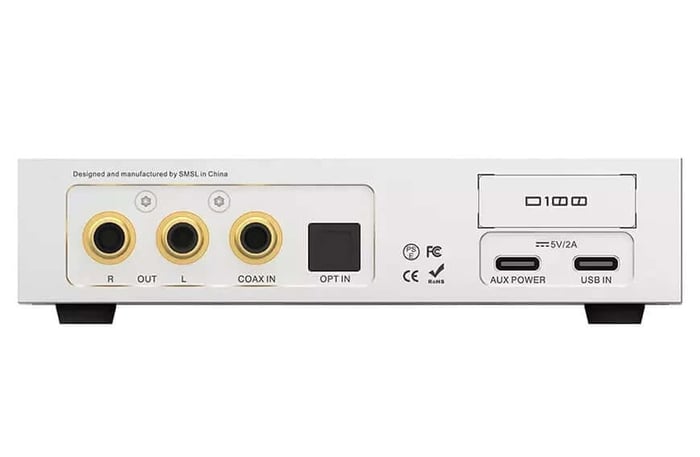

On the rear, you'll find a 2V RMS RCA line output suitable for connecting to active speakers, integrated amplifiers, or preamps. The SMSL D100 DAC’s body measures a modest 127 × 31.7 × 126.7 mm and weighs just 338 grams—light enough to fit neatly on any desk without demanding much space.

Crafted from CNC-machined aluminum alloy, it’s available in both sleek black and classic silver finishes, giving you options to match your setup’s aesthetic.

Bringing It All Together

The SMSL D100 DAC feels like the kind of device you’d want right next to your computer or streaming setup—compact but mighty, with thoughtful features tailored to headphone lovers and audiophiles alike. It’s a modern classic that balances power, precision, and style in a neat aluminum package.

So, are you ready to elevate your desktop audio game with a DAC and headphone amp that punches well above its weight? The SMSL D100 might just be the perfect companion for your listening adventures.

FAQ

• What digital inputs does the SMSL D100 support?
  It features USB-C, optical, and coaxial inputs, supporting PCM up to 24-bit/192kHz and DSD formats up to DSD512 via USB.
• Can I use the SMSL D100 with high-impedance headphones?
  Yes, it supports headphones up to 600 Ω, though power output decreases at higher impedances.
• Does the D100 have a display?
  Yes, a 1.66-inch display shows input source, sampling frequency, and other settings, housed behind tempered glass.
• Are there different digital filters available?
  The device offers eight digital filters to customize the DAC’s sound character.
• What finishes are available for the SMSL D100?
  It comes in black and silver aluminum alloy finishes.
